What is the MOQ for T553 SERIES?
The starting MOQ is 500 sets / SKU. Quantity tiers, samples and mixed-program feasibility are confirmed in the project quotation.
01 / COMPLETE PRODUCT
Product visual · final ordered sample governs
Product visual · final ordered sample governsCommercial SKUT553 SERIESProgram classFleet

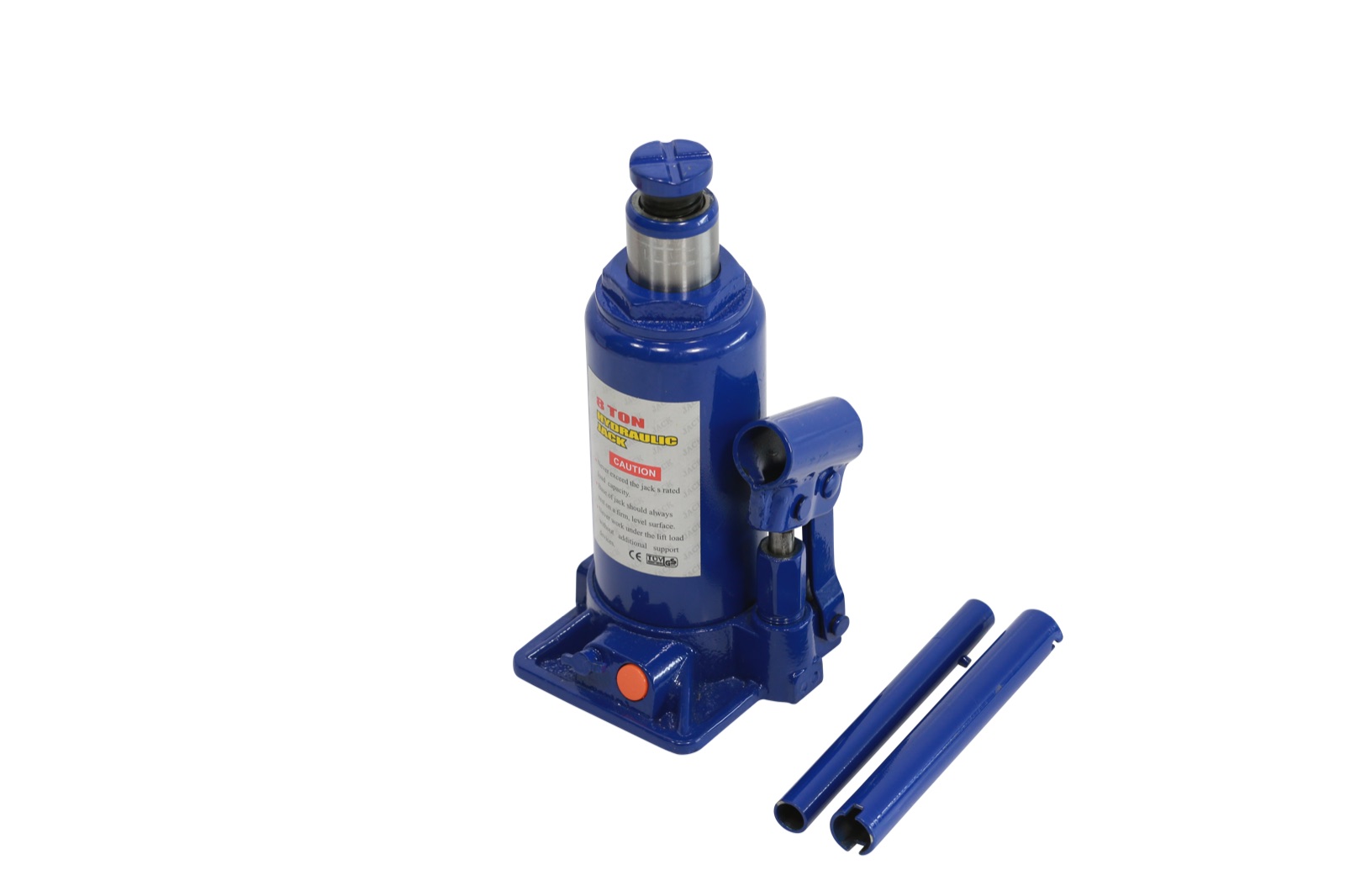

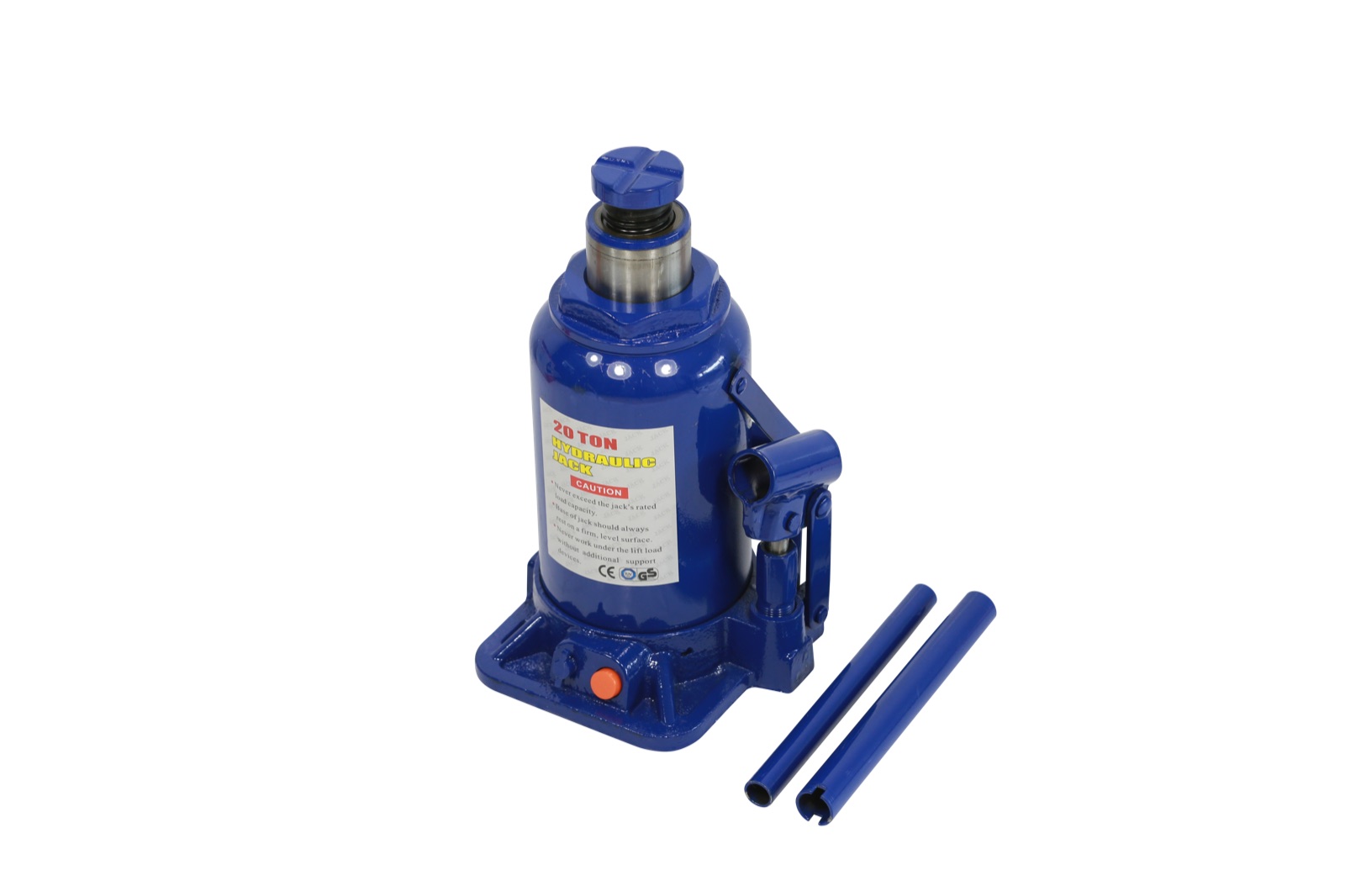

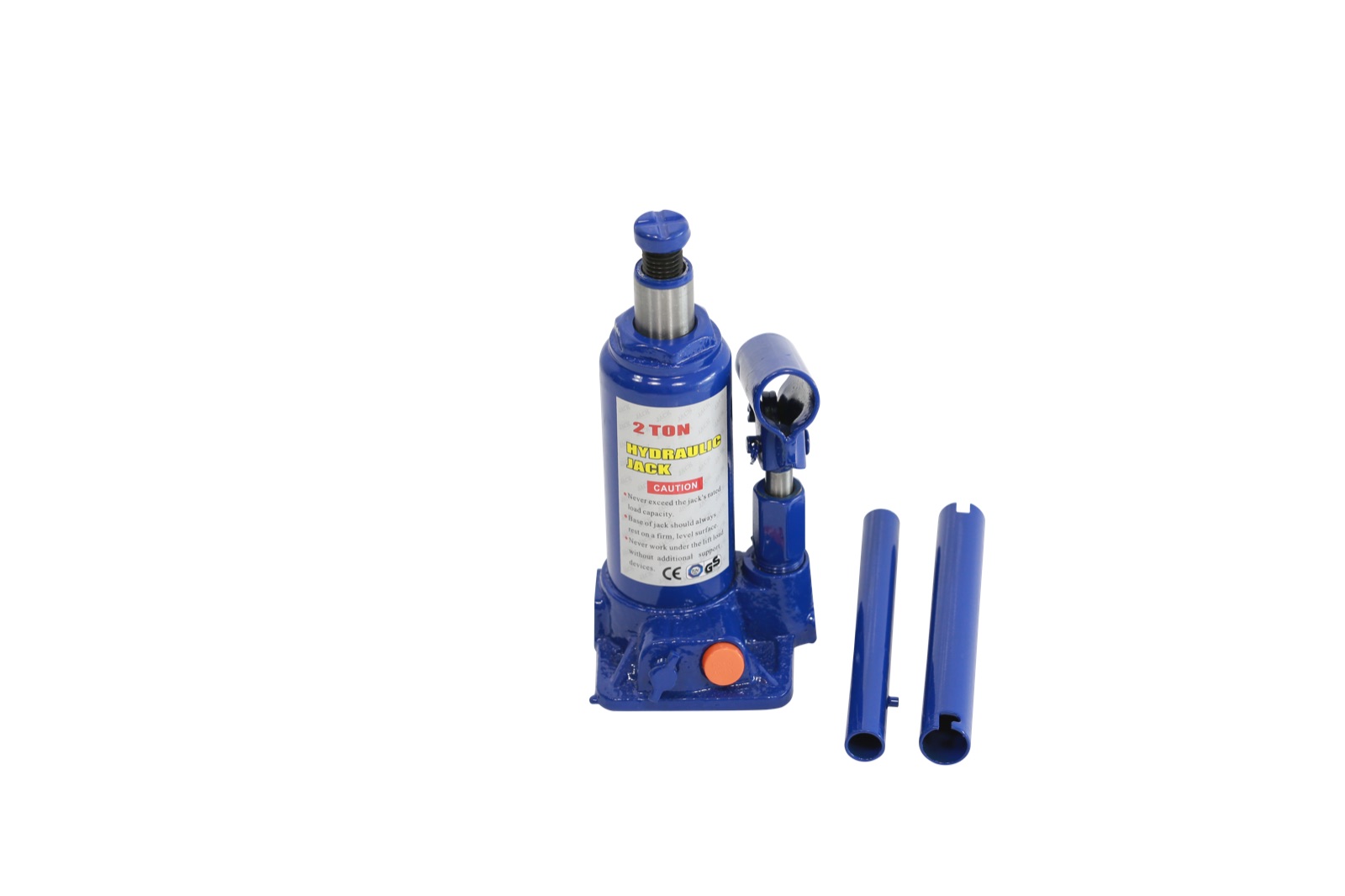

Bottle Jacks · T553 SERIES2T–20T · Complete product view
T553 Safety-Valve Bottle Jack Series
Buyer-ready specifications, MOQ and packaging information for distributor, retail and OEM project evaluation.
2T–20T · Complete product viewSafety-critical product fileApplication, rated capacity and destination-market evidence are reviewed against the ordered model.
Fleet maintenanceCommercial vehiclesIndustrial distribution
2T–20TCapacity / class
148–235 mmMinimum height
278–445 mmMaximum height
500 sets / SKUStarting MOQ
Wholesale only · No retail pricing · Final specification confirmed before order
01Application fit
Confirm vehicle, lifting point and operating environment.
02Height architecture
Review minimum height, travel and final maximum height.
03Commercial pack
Freeze label, manual, accessories, carton and MOQ.
04Market evidence
Map the ordered model to its destination-market file.
Technical data
A specification your purchasing team can forward.
MODEL FILET553 SERIESCommercial specification
- SKU
- T553 SERIES
- Drive
- Hydraulic
- Capacity / vehicle class
- 2T–20T
- Minimum height
- 148–235 mm
- Maximum height
- 278–445 mm
- Net weight
- 2.1–9.5 kg
- MOQ
- 500 sets / SKU
- Units / carton
- 2–10 sets
- Carton
- Varies by capacity
- Standard packing
- Color box, label and insert manual
01
02
03
04
05
06
07
08
09
10
Series / configurations
Compare capacities and lift ranges.
Rows reflect supplied quotation data. Confirmed production drawings and label values govern the order.
| SKU | Capacity | Min. | Lift | Adjust | Max. | Net weight | Qty / ctn | Carton |
|---|---|---|---|---|---|---|---|---|
| T553-2T | 2T | 148 mm | 80 mm | 50 mm | 278 mm | 2.1 kg | 10 | 57 × 21 × 19 cm |
| T553-4T | 4T | 180 mm | 110 mm | 60 mm | 350 mm | 2.9 kg | 5 | 64.5 × 14 × 23 cm |
| T553-6T | 6T | 195 mm | 125 mm | 60 mm | 380 mm | 3.7 kg | 5 | 64.5 × 14 × 23 cm |
| T553-8T | 8T | 200 mm | 125 mm | 60 mm | 385 mm | 4.4 kg | 4 | 57 × 14.5 × 23 cm |
| T553-10T | 10T | 200 mm | 125 mm | 60 mm | 385 mm | 5.1 kg | 4 | 56 × 15 × 23 cm |
| T553-12T | 12T | 210 mm | 135 mm | 60 mm | 405 mm | 6.2 kg | 4 | 60 × 16 × 24 cm |
| T553-16T | 16T | 225 mm | 145 mm | 60 mm | 405 mm | 7.1 kg | 2 | 33 × 17 × 26 cm |
| T553-20T | 20T | 235 mm | 150 mm | 60 mm | 445 mm | 9.5 kg | 2 | 37 × 18 × 27 cm |
MODEL-LEVEL
REVIEWT553 SERIES · QUALITY FILE
REVIEWT553 SERIES · QUALITY FILE
Compliance & quality note
Evidence follows the exact ordered model.
Applicable standards, labels, manuals and test documentation are checked against the exact model, target market and final configuration before quotation approval.
Model identity Destination market Final configuration
No blanket certification claims.See the verification workflow
Buyer FAQ
Ask a model-specific question Questions purchasing teams ask about T553 SERIES.
Final commercial terms and safety documentation follow the approved sample and order configuration.
What vehicles or applications fit T553 Safety-Valve Bottle Jack Series?
T553 Safety-Valve Bottle Jack Series is currently presented for fleet maintenance, commercial vehicles, industrial distribution. The vehicle class, lifting point, minimum height and required travel must be checked before model approval.
Can T553 SERIES be supplied with private-label packaging?
Yes. Available OEM scope can include product color, logo, safety labels, manual languages, retail box and outer carton, subject to quantity and final configuration.
Which standards or certificates apply to T553 SERIES?
WANPU does not apply one certificate to an entire range. Applicable reports, labels and manuals are checked against the exact model, ordered configuration and destination market before a claim is approved.
RFQ · T553 SERIES
Request price tiers, sample timing and OEM options.
Tell us the target market and quantity. We will reply with a configuration-specific quote rather than a public retail price.
Price tiers by volume Sample / golden sample plan Packaging and artwork scope Compliance document checklist
