What is the MOQ for T552 SERIES?
The starting MOQ is 500 sets / SKU. Quantity tiers, samples and mixed-program feasibility are confirmed in the project quotation.
01 / COMPLETE PRODUCT
Product visual · final ordered sample governs
Product visual · final ordered sample governsCommercial SKUT552 SERIESProgram classFleet
Bottle Jacks · T552 SERIES2T–20T · Complete product view
T552 European-Configuration Bottle Jack Series
Buyer-ready specifications, MOQ and packaging information for distributor, retail and OEM project evaluation.
2T–20T · Complete product viewSafety-critical product fileApplication, rated capacity and destination-market evidence are reviewed against the ordered model.
European distributionFleet serviceProfessional automotive retail
2T–20TCapacity / class
158–244 mmMinimum height
308–449 mmMaximum height
500 sets / SKUStarting MOQ
Wholesale only · No retail pricing · Final specification confirmed before order
01Application fit
Confirm vehicle, lifting point and operating environment.
02Height architecture
Review minimum height, travel and final maximum height.
03Commercial pack
Freeze label, manual, accessories, carton and MOQ.
04Market evidence
Map the ordered model to its destination-market file.
Technical data
A specification your purchasing team can forward.
MODEL FILET552 SERIESCommercial specification
- SKU
- T552 SERIES
- Drive
- Hydraulic
- Capacity / vehicle class
- 2T–20T
- Minimum height
- 158–244 mm
- Maximum height
- 308–449 mm
- Net weight
- 2.4–10.5 kg
- MOQ
- 500 sets / SKU
- Units / carton
- 2–10 sets
- Carton
- Varies by capacity
- Standard packing
- Color box, label and insert manual
01
02
03
04
05
06
07
08
09
10
Series / configurations
Compare capacities and lift ranges.
Rows reflect supplied quotation data. Confirmed production drawings and label values govern the order.
| SKU | Capacity | Min. | Lift | Adjust | Max. | Net weight | Qty / ctn | Carton |
|---|---|---|---|---|---|---|---|---|

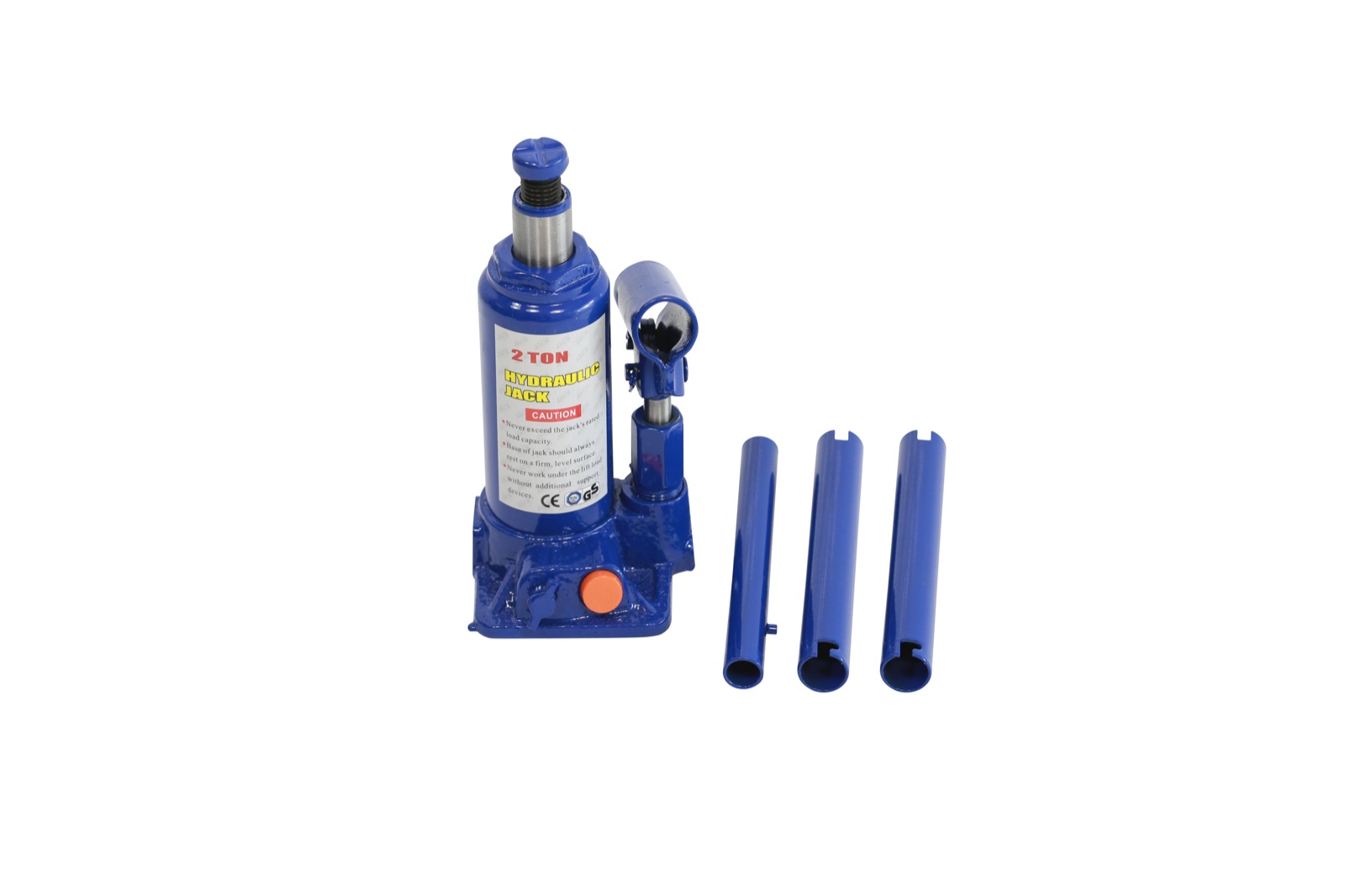

| T552-2T | 2T | 158 mm | 90 mm | 60 mm | 308 mm | 2.4 kg | 10 | 52 × 25.5 × 19 cm |
| T552-4T | 4T | 195 mm | 125 mm | 60 mm | 380 mm | 3.4 kg | 8 | 46 × 26.5 × 22.5 cm |
| T552-6T | 6T | 197 mm | 125 mm | 60 mm | 382 mm | 4.4 kg | 6 | 38 × 27.5 × 22.5 cm |

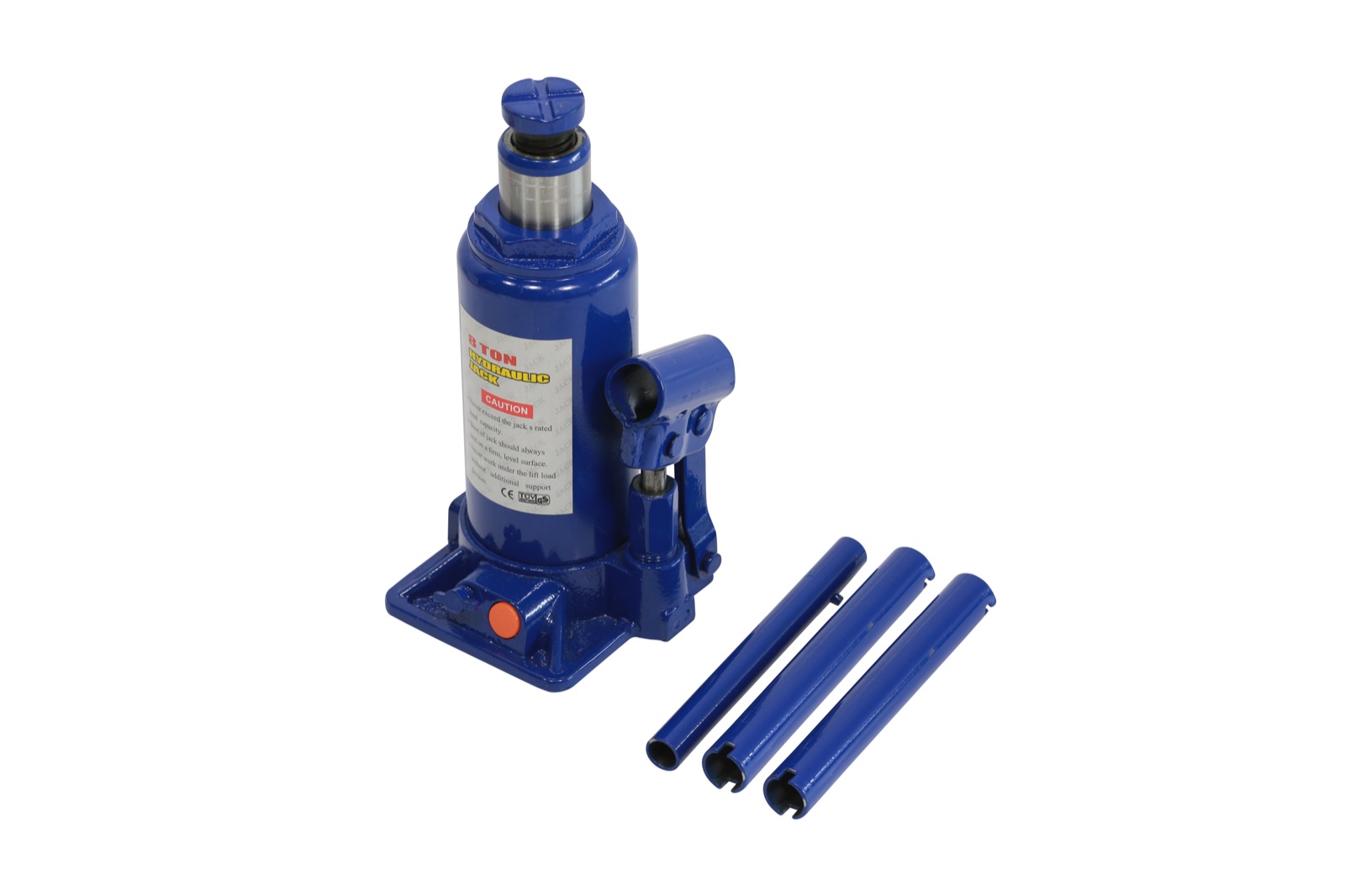

| T552-8T | 8T | 185 mm | 115 mm | 60 mm | 360 mm | 4.7 kg | 4 | 29.5 × 27.5 × 22.5 cm |
| T552-10T | 10T | 205 mm | 125 mm | 60 mm | 390 mm | 5.6 kg | 4 | 30.5 × 29.5 × 24 cm |
| T552-12T | 12T | 215 mm | 125 mm | 60 mm | 400 mm | 6.9 kg | 2 | 30.5 × 16.5 × 24 cm |
| T552-16T | 16T | 225 mm | 140 mm | 60 mm | 425 mm | 7.5 kg | 2 | 31.5 × 17 × 24.5 cm |

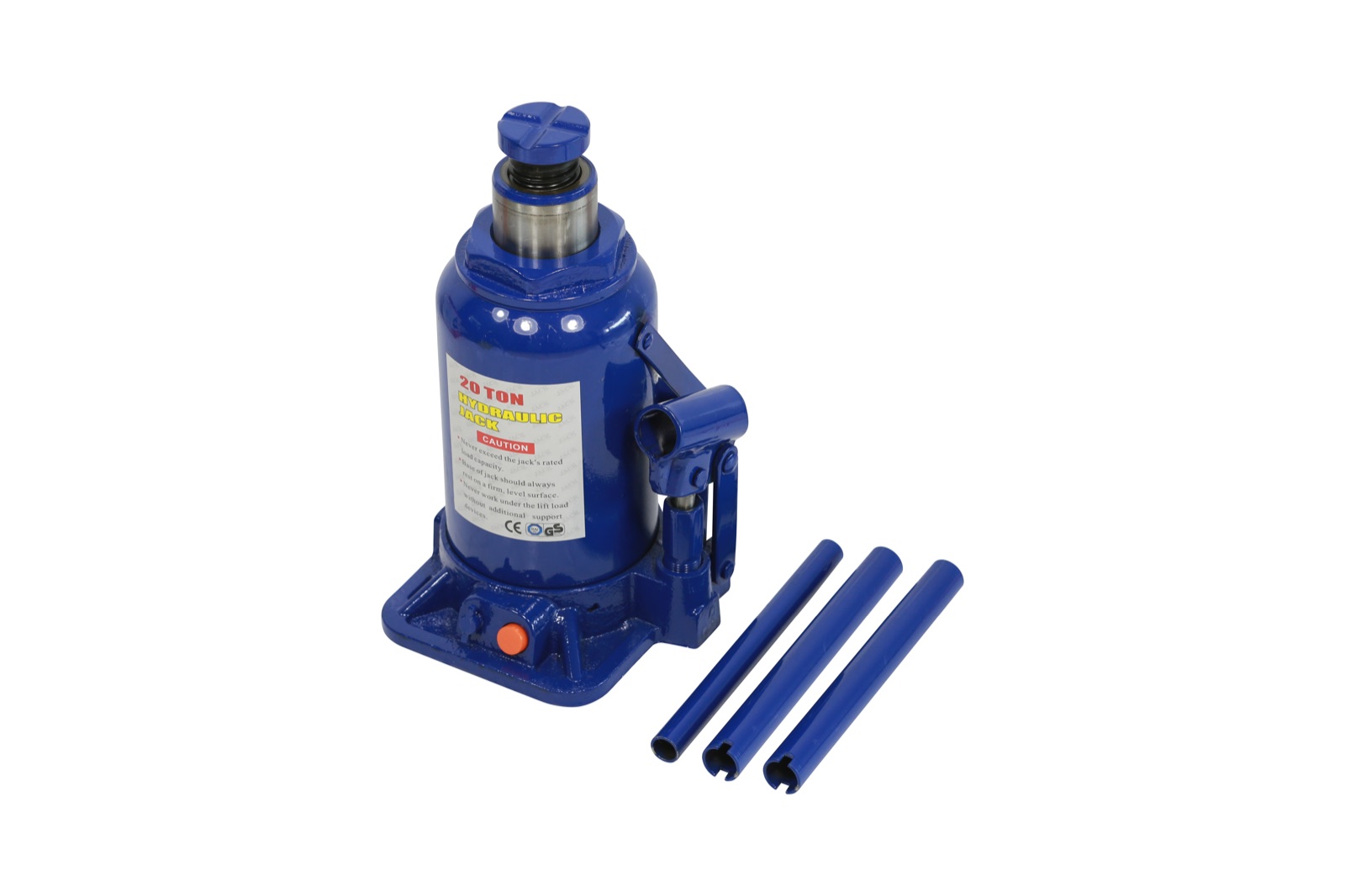

| T552-20T | 20T | 244 mm | 145 mm | 60 mm | 449 mm | 10.5 kg | 2 | 34.5 × 19.5 × 27 cm |
MODEL-LEVEL
REVIEWT552 SERIES · QUALITY FILE
REVIEWT552 SERIES · QUALITY FILE
Compliance & quality note
Evidence follows the exact ordered model.
The source sheet identifies this as the GS program; the website does not claim certification until the matching certificate is supplied and mapped to each SKU.
Model identity Destination market Final configuration
No blanket certification claims.See the verification workflow
Buyer FAQ
Ask a model-specific question Questions purchasing teams ask about T552 SERIES.
Final commercial terms and safety documentation follow the approved sample and order configuration.
What vehicles or applications fit T552 European-Configuration Bottle Jack Series?
T552 European-Configuration Bottle Jack Series is currently presented for european distribution, fleet service, professional automotive retail. The vehicle class, lifting point, minimum height and required travel must be checked before model approval.
Can T552 SERIES be supplied with private-label packaging?
Yes. Available OEM scope can include product color, logo, safety labels, manual languages, retail box and outer carton, subject to quantity and final configuration.
Which standards or certificates apply to T552 SERIES?
WANPU does not apply one certificate to an entire range. Applicable reports, labels and manuals are checked against the exact model, ordered configuration and destination market before a claim is approved.
RFQ · T552 SERIES
Request price tiers, sample timing and OEM options.
Tell us the target market and quantity. We will reply with a configuration-specific quote rather than a public retail price.
Price tiers by volume Sample / golden sample plan Packaging and artwork scope Compliance document checklist
